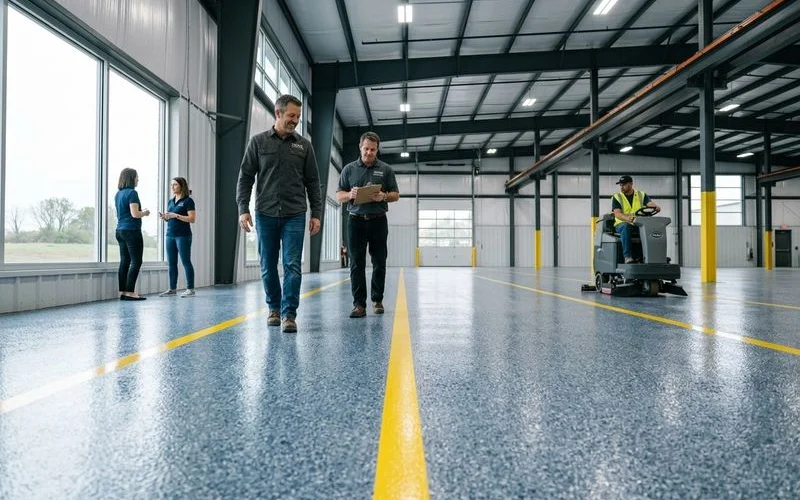

OSHA Floor Markings: Protecting Grand Rapids Workers
Every year, forklift-pedestrian incidents account for a significant portion of serious industrial injuries. OSHA data consistently shows inadequate traffic separation — particularly the lack of clearly marked pedestrian corridors — as a primary contributing factor. For Grand Rapids’ manufacturing sector — the furniture production floors, automotive parts suppliers, and distribution centers that drive West Michigan’s economy — well-designed floor markings are both a regulatory requirement and a practical safety tool.
OSHA 29 CFR 1910.22 and 1910.178 require facilities to clearly delineate pedestrian pathways, equipment zones, and hazard areas. Beyond compliance, proper markings communicate expected behavior, define traffic flow, and reduce the cognitive load on workers navigating busy facilities. When everyone knows exactly where pedestrians walk and where forklifts travel, incident rates drop.
Epoxy Flooring Pro installs OSHA-compliant floor marking systems for Grand Rapids industrial facilities using high-build epoxy and polyurea that outlast standard traffic paint by years.
Why Floor Paint Fails in Grand Rapids Manufacturing Facilities
Standard traffic paint at 2–4 mils DFT has no resistance to the heavy forklift traffic common in West Michigan’s manufacturing and distribution facilities. A loaded forklift tire applies enormous point pressure that wears through paint in weeks at high-traffic intersections — peeling and failing rapidly.
The Thickness Advantage
Our high-build epoxy markings at 20–30 mils DFT bond chemically to prepared concrete, cure to a hard cross-linked polymer matrix, and resist abrasion from steel and polyurethane forklift tires. In Grand Rapids facilities — from Steelcase production floors to I-96 corridor distribution centers — our markings typically last 5–10 years versus 6–18 months for paint.
For extreme traffic conditions, we use polyurea marking materials with rapid cure times (traffic-ready in 1–2 hours) — ideal for overnight striping at Grand Rapids facilities that cannot tolerate daytime shutdowns.
Surface Preparation Matters for Markings Too
Grinding the stripe path to clean, profiled concrete is as critical for markings as for full epoxy coating systems. We grind all stripe paths to remove existing paint, contamination, and surface laitance — a step most Grand Rapids striping contractors skip entirely.

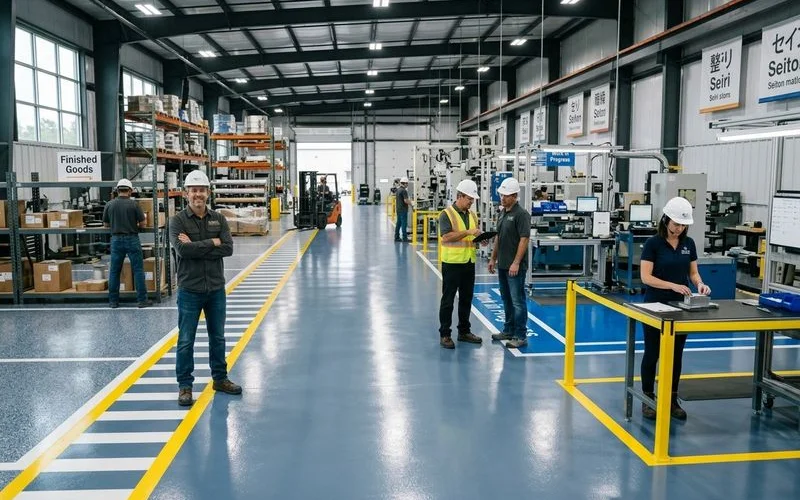

5S Floor Marking Systems for West Michigan Manufacturers
Grand Rapids’ furniture manufacturing heritage and lean manufacturing culture make 5S floor markings particularly important. Companies like Steelcase, MillerKnoll, and dozens of Tier 1 automotive suppliers across Kentwood and Wyoming rely on 5S programs to organize production floors.
5S Marking Elements We Install
Aisle and Pedestrian Lanes: Yellow high-build epoxy at code-compliant widths (48–72 inches for forklift aisles, 24–36 inches for pedestrian corridors).
Workstation Boundaries: White outlines defining the footprint of each workstation, machine, or assembly area — essential for Grand Rapids furniture production lines.
Material Staging Areas: Outlines and labels for WIP buffers, incoming material, finished goods, and FIFO lane structures. Color coding distinguishes zone types.
Equipment Home Positions: Precise outlines for carts, mobile equipment, and pallet jacks. Often includes text labels stenciled in the marking system.
Shadow Board Locations: Floor outlines marking where tool organization boards are positioned — a 5S staple in West Michigan manufacturing.

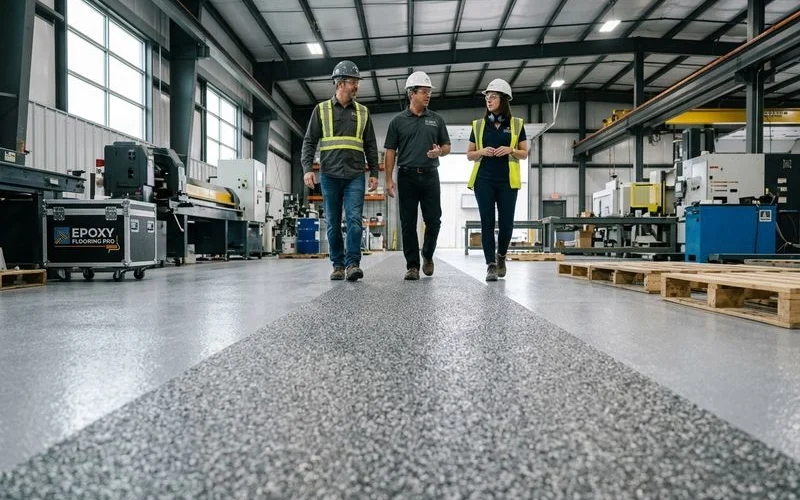

Non-Slip Coatings for Grand Rapids Pedestrian Safety
Slippery industrial floors — particularly in areas where condensation forms during West Michigan’s cold winters or where process water is present — require non-slip coatings integrated with the marking system.
Our non-slip systems use aluminum oxide or silicon carbide aggregate broadcast into wet marking material. We target DCOF values appropriate to the application:
- General pedestrian areas: DCOF ≥ 0.42
- Wet process areas: DCOF ≥ 0.60
- Ramps and inclines: DCOF ≥ 0.80
Color Standards and ANSI Compliance
We design Grand Rapids floor marking systems to ANSI/ASSP Z535 standards:
| Color | Application |
|---|---|
| Yellow | Caution — aisle boundaries, forklift lanes |
| Red | Danger — fire equipment, restricted zones |
| Orange | Warning — quarantined goods, inspection holds |
| White | General — workstation boundaries, finished goods |
| Green | Safety — first aid, emergency exits |
| Blue | Notice — informational items |
| Black & Yellow | Physical hazard — posts, columns, low clearance |
Contact our safety striping team to schedule a facility walk-through and develop an OSHA-compliant marking layout for your Grand Rapids operation.
What's Included
Our OSHA Safety Striping Installation Process
Facility Safety Assessment and Layout Design
We review your existing floor layout, pedestrian traffic patterns, forklift routing, emergency egress paths, and any OSHA citations or audit findings related to floor markings. Working with your safety manager, we develop a striping layout plan that addresses all regulatory requirements and operational logic before any marking begins.
Surface Preparation and Cleaning
Existing worn striping, oil contamination, and surface laitance are removed by diamond grinding or scarifying in the stripe paths. Proper surface preparation ensures the new marking material bonds to concrete rather than to a contaminated surface — which is why painted lines fail within months while our epoxy markings last for years.
Layout and Marking
Stripe paths are laid out using chalk line and measuring tools against established reference points. For 5S programs and shadow board locations, we work from your CAD drawings or help you develop the layout from scratch. Complex shapes, logos, and graphics are masked using precision tape before material application.
Epoxy or Polyurea Application
High-build epoxy or fast-cure polyurea is applied by roller to the prepared, masked stripe paths. Stripe thickness is specified to survive forklift traffic — typically 20–30 mils DFT, far exceeding the 2–4 mils of standard traffic paint. Anti-slip aggregate is broadcast into the wet material in pedestrian zones.
Topcoat and Anti-Slip Application
Where anti-slip performance is required, aluminum oxide aggregate is broadcast into the wet material and back-rolled to embed the particles before an additional sealer coat locks the aggregate in place. This creates a durable, textured surface that maintains its DCOF (Dynamic Coefficient of Friction) rating under wear.
Final Inspection and Documentation
Completed markings are inspected against the approved layout plan. We provide a photographic record of all installed markings and a written report confirming compliance with OSHA 29 CFR 1910.22 requirements. Documentation can be included in your OSHA compliance records.
Why Choose Epoxy Flooring Pro
OSHA Regulatory Knowledge
We know the OSHA standards applicable to industrial floor markings — CFR 1910.22, 1910.136, and 1910.178. We identify gaps between your current layout and regulatory requirements.
Materials That Outlast Paint
Standard floor paint fails rapidly under Grand Rapids forklift traffic. Our high-build epoxy and polyurea systems are 10–15 times thicker and bond chemically to concrete, lasting 5–10 years versus 6–18 months for paint.
5S Implementation Experience
We have implemented 5S floor marking systems for lean manufacturing facilities across West Michigan — including furniture production operations that rely on precise material flow and workstation organization.
Minimal Operational Disruption
Floor striping does not require facility-wide shutdown. We work section by section. Polyurea systems return to service in 1–2 hours, allowing striping projects in active Grand Rapids facilities with minimal disruption.
Integrated with Coating Projects
When striping is part of a larger [coating](/epoxy-urethane-flooring/) or [polished concrete](/polished-concrete/) project, we integrate the design into the overall system specification.
What Our Clients Say
"We received an OSHA citation for inadequate aisle markings at our Wyoming manufacturing plant. Epoxy Flooring Pro understood exactly what the citation required, developed a compliant layout, and completed installation over a single weekend. We passed the follow-up inspection."
"We implemented a full 5S program at our Grand Rapids furniture assembly plant and chose Epoxy Flooring Pro for floor markings. Every shadow board location, home position, and flow lane was installed exactly as specified. Fourteen months later, the markings look new despite constant forklift traffic."
"Our Kentwood distribution center had virtually no pedestrian separation from forklift traffic. Epoxy Flooring Pro assessed our traffic patterns, designed a sensible layout, and installed the system in two nights without stopping pick operations. Safety incidents in marked areas dropped to zero."
